JBA Upper Control Arms are preassembled and ready to bolt into your Tacoma!

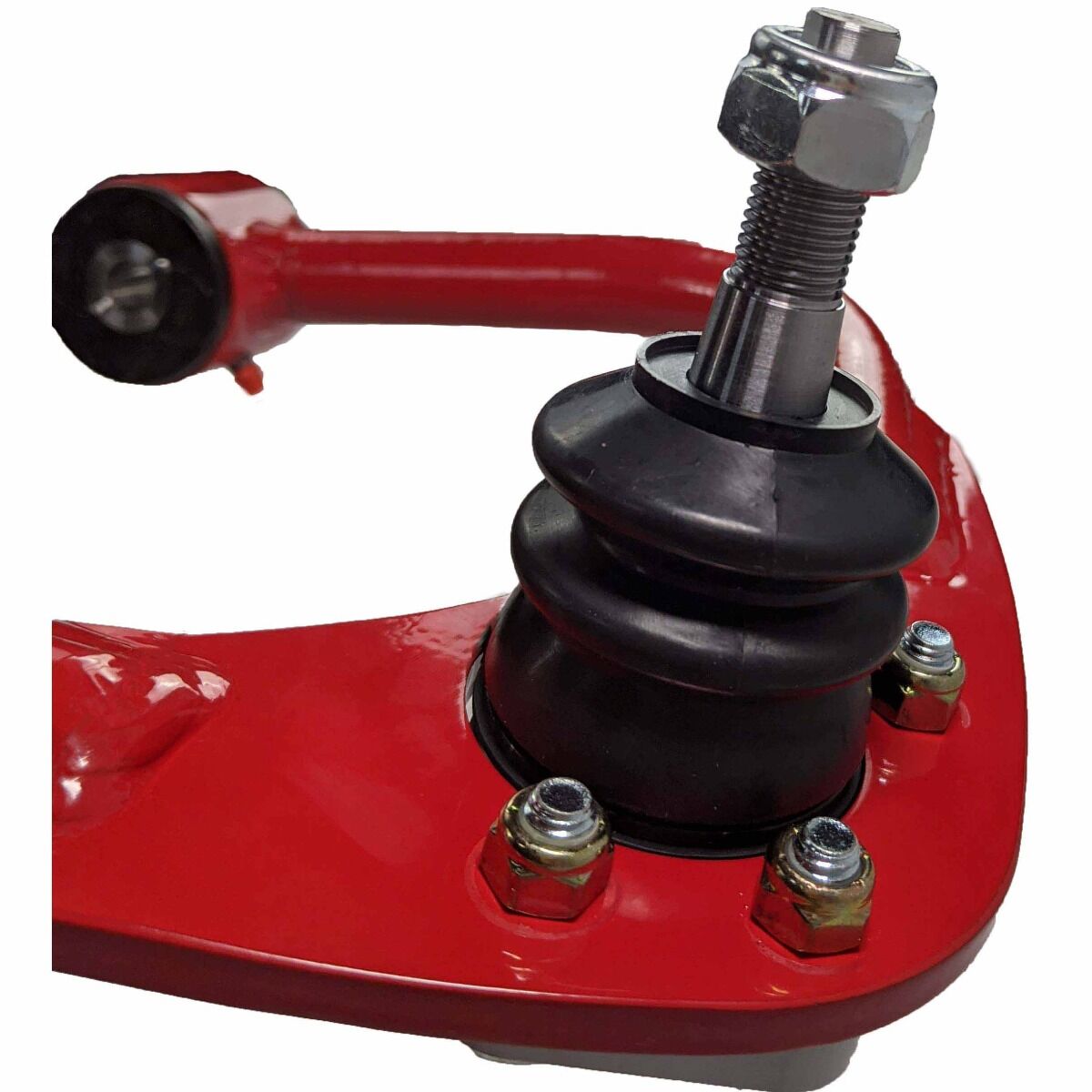

American-made steel tubing, red powder-coat finish, replaceable ball joints, 2 grease ports for the JBA EZ lube bushings, and 1 grease port for the ball joint. Ball joints are mounted on an angle to line up with the steering knuckle.
Note: Left and Right UCAs are not symmetrical.
The JBA Upper Control Arms are compatible with MOST Tacoma spring lifts and leveling kits on the market today! Works with Tacoma lifts kits up to 4 inches.
Toyota Tacoma 2005-Current * Hilux / Vigo 2005-2015
(05-22 6-Lug Tacoma)
2nd Gen Tacoma 2005-2015
3rd Gen Tacoma 2016-2022
1 Right UCA
1 Left UCA
2 JBA custom ball joints
8 synthetic elastomer a-arm bushings
1 Bushing washer kit
4 steel bushing sleeves
2 JBA sticker 6 x 1
Weight: 18 lbs
Type: 1026 DOM A513-5 Domestic Tubing 1.06" OD x 0.75" ID
Install time: 1-3 Hours
