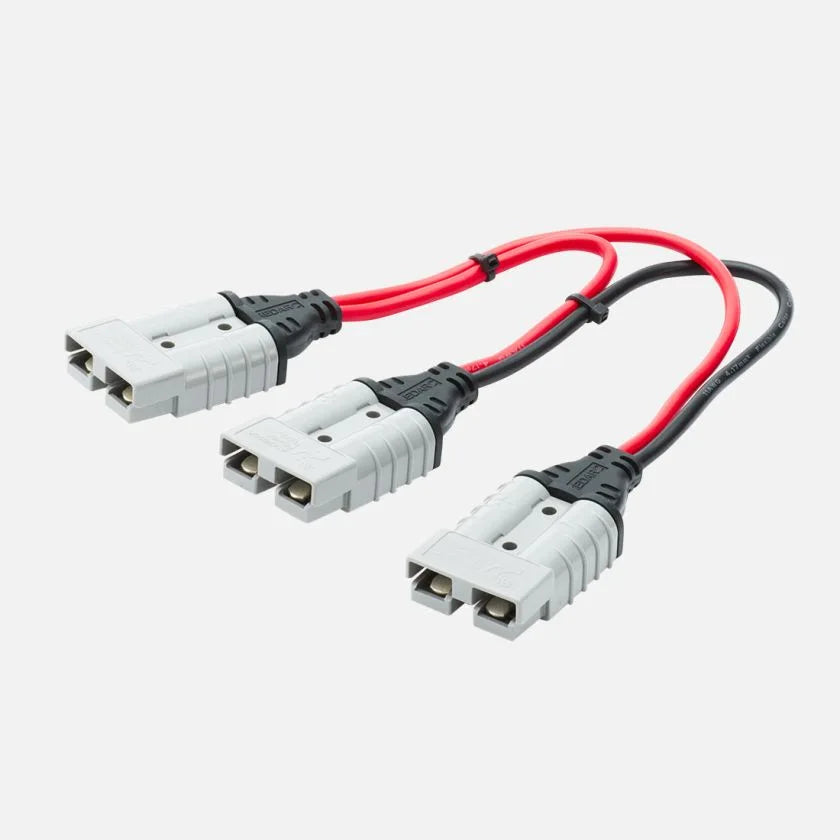

REDARC 12" Anderson Series Cable (SRC0011)
RA-SRC0011
$81.00
A 12" Anderson™ Series Cable used to connect multiple solar panels together in Series, increasing your total panel voltage.
The 12" Anderson™ Series Cable is used to connect multiple solar panels together in Series, increasing your total panel voltage.
With genuine industry standard Anderson™SB™50 connectors, set up is easy. These high quality Anderson™ plugs are simple and fast to connect with no screw terminals and no risk of poor connections from frayed wires or loose terminals – just plug and play!
| GTIN_BARCODE | 9338628004263 |
|---|---|
| BRAND | REDARC |
| BLUETOOTH COMPATIBLE | No |
| TRAILER INSTALL | No |
| MPPT SOLAR REGULATOR | No |
| SUITABLE FOR 12V SYSTEMS | No |
| CABIN/ CANOPY INSTALL | No |
| ENGINE BAY INSTALL | No |
| SUITABLE FOR 24V SYSTEMS | No |
| INSULATION/ SHEATH | UV Stabilised PVC |
| VOLTAGE RATING | 50V DC max |
| CONDUCTOR | Bare Copper |
| CURRENT RATING | 40A |
| WIRE GAUGE | AWG 11 (Ø2.3 mm) |
| CABLE LENGTH | 1' (±0.4") (300 mm (±10 mm) ) |
| WARRANTY | 2 Years |
| CONNECTOR TYPE | Series Anderson™ SB™ 50, Anderson™ SB™ 50 |
