Freedom Recovery Gear 3/8" Winch Line for Internal Brake Winch

FRG-719710718333
$549.88
Freedom Optimized Winch Rope 3/8 x 65’ for internal braked winches. Freedom Recovery Gear Ltd.  3/8” Optimized Winch Rope  with MBS of 17,000 lbs is made from A combination of 2 high strength synthetic Ropes, Dyneema® SK-78  and Vectro-12. These 2 ropes have very different qualities that when spliced together make a superior winch...
Color :
Size :
$549.88
customers are viewing this product

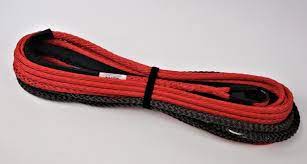

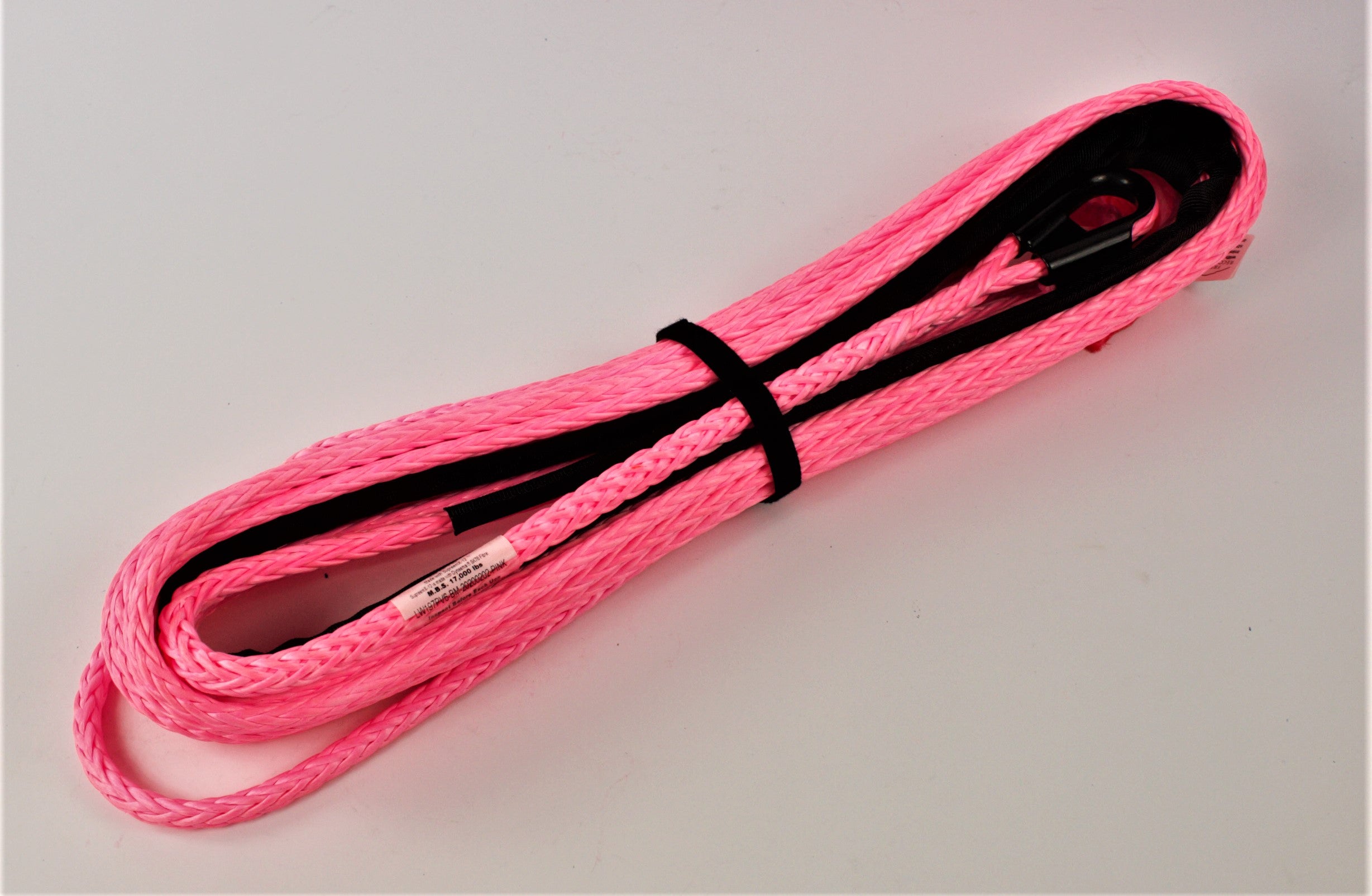

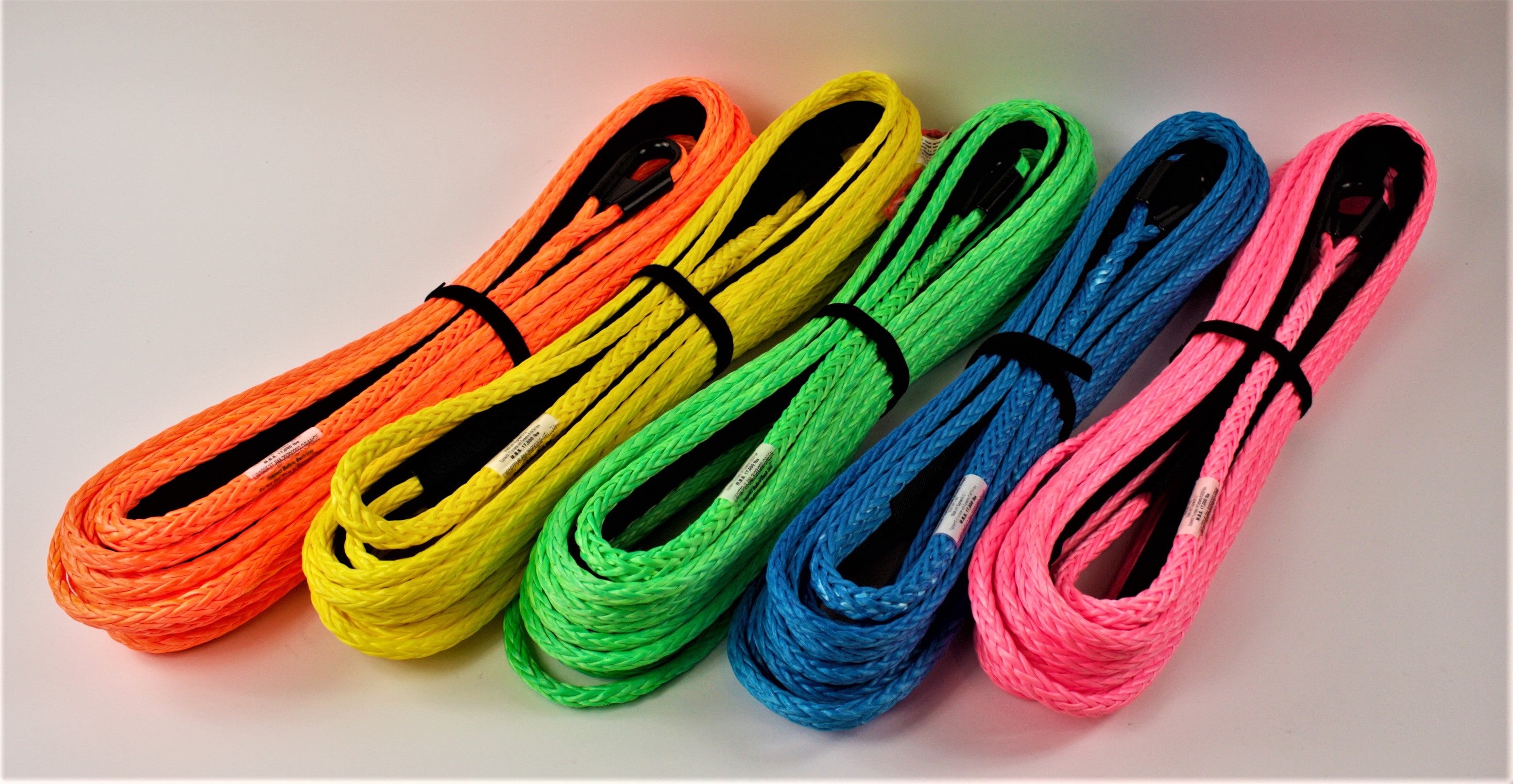

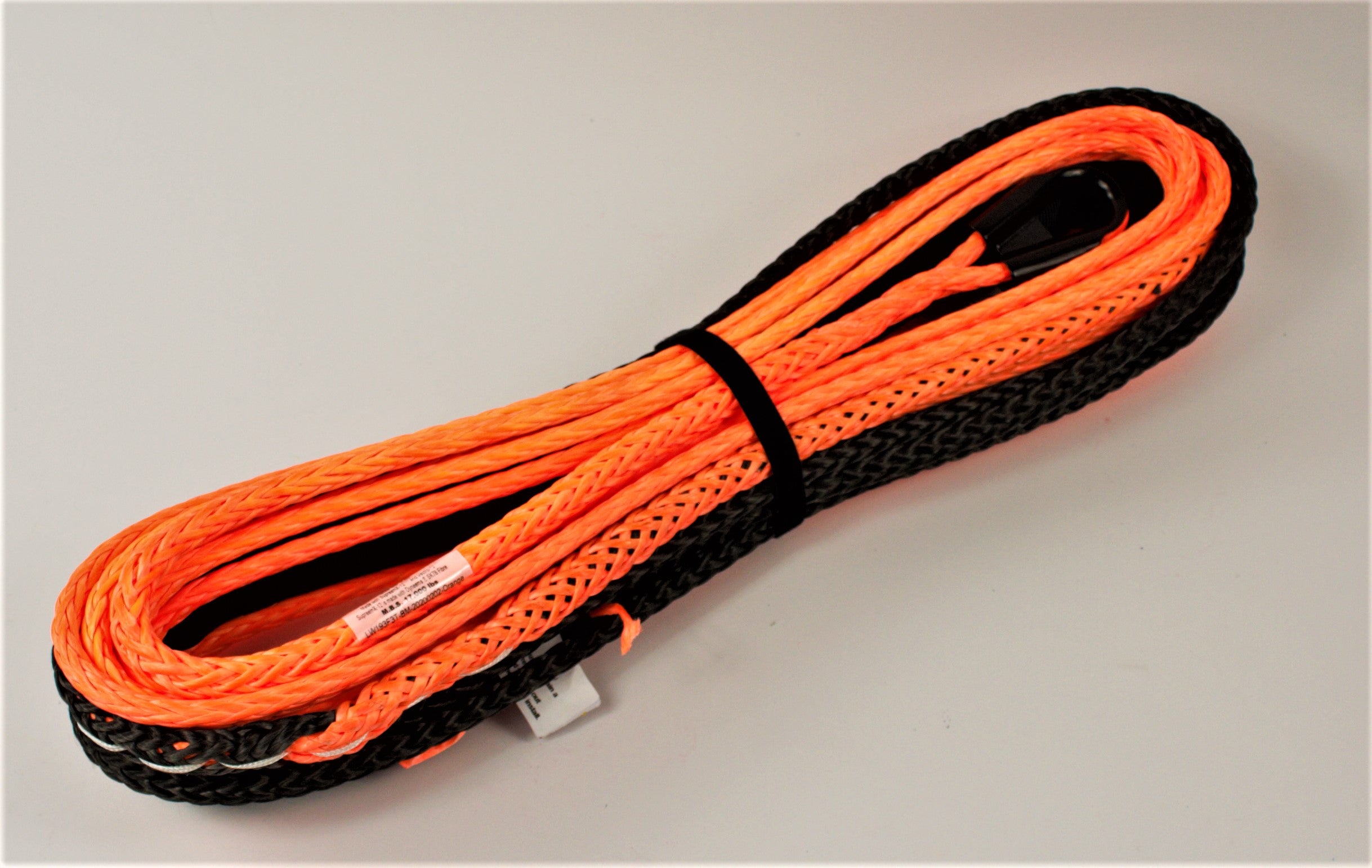

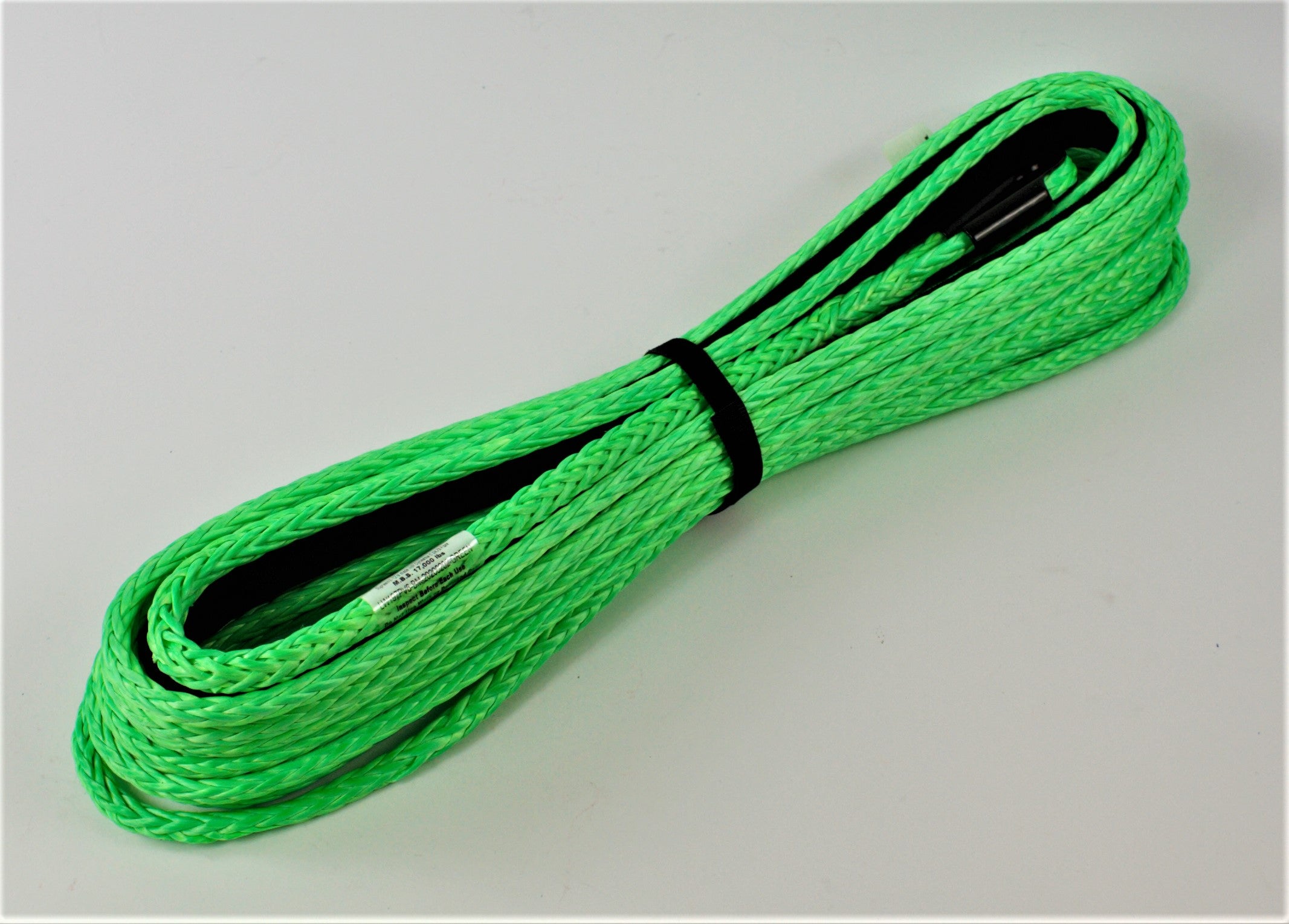

Freedom Optimized Winch Rope 3/8 x 65’ for internal braked winches.

Freedom Recovery Gear Ltd.  3/8” Optimized Winch Rope  with MBS of 17,000 lbs is made from A combination of 2 high strength synthetic Ropes, Dyneema® SK-78  and Vectro-12. These 2 ropes have very different qualities that when spliced together make a superior winch line for an internal braked winch. The Main section of the winch line is made from SupreemX-12 which has been coated in a variety of hi visibility colours, the Black Vectro-12, possesses A heat resistance of double other Synthetic Ropes with a melting point of approx. 550 degrees F , it is ideal for the first base wrap of your winch drum. Winches with internal Brakes (most) can build up significant heat that can compromise the strength of normal synthetic rope. Vectro-12 Addresses this with its unique formula.

Characteristics

  • Extremely high strength
  • Light weight (1/7 weight of steel)
  • Abrasion resistant
  • Low stretch
  • Floats in water
  • Extremely Flexible



What Size rope for my winch?

Up to 8000k winch 3/8” Standard/ occasional or high Use

Up to 10,000k winch 3/8” Standard/ occasional or 7/16 for high use

Up to 12,000k winch 7/16 Standard/ occasional or ½” for high use

Up to 18,000 winch ½ “ Standard/ occasional or high use

Product may may look slightly different and colours may very from images.



MINIMUM BREAKING STRENGTH (MBS) IS THE MINIMUM FORCE NECESSARY TO CAUSE A PIECE OF RECOVERY GEAR TO FAIL.

Working Load Limit (WLL) is the maximum working load designed by the manufacturer. This load represents a force that is much less than that required to make the lifting equipment fail or yield.

In line with the Cordage Institute Guidelines CI 1401-19 Recommended Safety Practices for use of Fiber rope. We apply a Design Factor DF 5:1 to our Soft Shackles, winch lines and Winch Line Extensions.

As an Example, that mean a product with a Minimum Break Strength  of 40,000 lbs would have a Working load Limit of 8000 lbs
